Features and specifications:

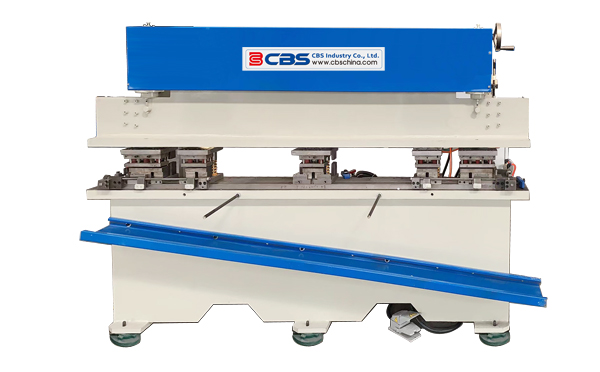

1. It’s a heavy duty hydraulic punching machine which is widely used for aluminium PV / solar panel framework manufacturing.
2. The punching machine equipped with high speed hydraulic station and two hydraulic cylinders which working synchronous to effect whole length of profiles punching at same time.
3. The air cooling system can reduce the hydraulic station working temperature.
4. The punching dies fixed on bed and easily adjust the distance according to real requirement.
5. The machine adopt PLC and HMI controller, features simple operation, it automatically count punched pieces.
Technical parameter:
Working air pressure
0.5~0.8mpa
Air consumption
100L/min
Input voltage
3-phase, 380 /415 v, 50hz
Input power
6 kW
Tooling installation Open Height
240mm
Tooling installation Depth
260mm
Tooling installation Length
2800mm
Punching Stroke
100mm
Cycle Time
around 2 second
Working Pressure
250 KN
Overall Dimensions
3000x1100x1700
Gross Weight
2000KG
PVP-2800 Hydraulic Solar Panel Framework Gang Punching Machine - Framework Long Side Manufacturing Demo
