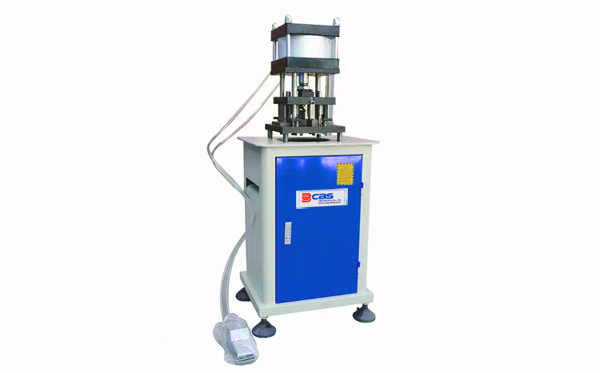

PPN-16 Pneumatic Punching Machine

PPN-16 Pneumatic Punching Machine

This machine is used to punch hardware holes and other holes or grooves in aluminum windows and doors. Pneumatic punching with multi-station makes punched holes smooth, and ensures high productivity. Driving system with pneumatic transmission makes punching process stable. The aluminum door-window punching machine can punch grooves for handles and drain slots, cut corners, and punch holes (φ10mm, φ6mm) for transmitter ends.

Specifications:

Model                           PPN-16
Nominal pressure        16KN
Punching stroke           30mm
Die size                       340×240×500mm
Outside dimension      520×450×1200mm
Weight(about)            120kg
