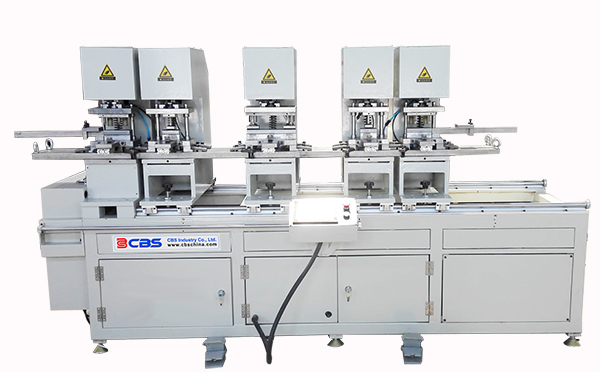

PMF-525 Multi-head Hydraulic Punching Machine
Published by:CBS Industry Co Ltd
Features and functions:
1. The multi-head hydraulic punching machine is mainly used for all kinds of aluminium profiles multi holes punching at same time, like solar panel frame profile punching, solar panel installation extrusion punching etc.
2. The machine have PLC controller, through HMI easy to select working heads, all the heads can working at same time, or separately according to requirement. Max. two operators can work on two different profiles at same time.
3. The hydraulic station have large oil tank and cooling fan to make the machine can running at high speed and long time working also.
4. It’s a high efficiency machine for solar panel making and other punching processing of aluminium profiles.
Technical parameter:
| Power supply | 380v 50Hz |
| Motor power | 5.2kw |
| Rated oil pump pressure | 16 Mpa |
| Capacity of oil box | 100 L |
| Press nominal pressure | 50KN (single head) |
| Travel times | 30~40/min |
| Closing height | 180mm |
| Punching travel | 10~50mm |
| Overall dimension | 3000×1900×1500mm |
