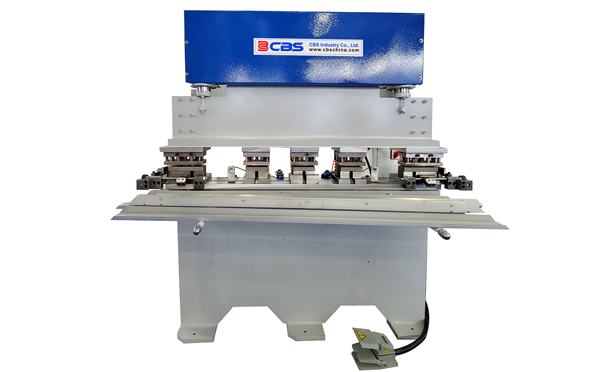

PVP-1450 Solar Panel Framework Hydraulic Gang Punching Machine
Published by:CBS Industry Co Ltd
Features and specifications:
1. It’s a heavy duty hydraulic punching machine which is widely used for aluminium PV / solar panel framework manufacturing.
2. The punching machine equipped with high speed hydraulic station and two hydraulic cylinders which working synchronous to effect whole length of profiles punching at same time.
3. The air cooling system can reduce the hydraulic station working temperature.
4. The punching dies fixed on bed and easily adjust the distance according to real requirement.
5. The machine adopt PLC and HMI controller, features simple operation, it automatically count punched pieces.
Technical parameter:
| Working air pressure | 0.5~0.8mpa |
| Air consumption | 100L/min |
| Input voltage | 3-phase, 380 /415 v, 50hz |
| Input power | 4 kW |
| Tooling installation Open Height | 240mm |
| Tooling installation Depth | 260mm |
| Tooling installation Length | 1450mm |
| Punching Stroke | 100mm |
| Cycle Time | around 2 second |
| Working Pressure | 250 KN |
| Overall Dimensions | 1650x1100x1700 |
| Gross Weight | 1600KG |
PVP-1450 Solar Panel Framework Hydraulic Gang Punching Machine - Short side manufacturing demo
