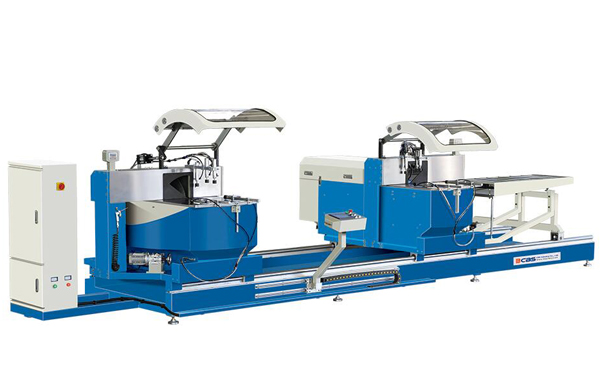

CDMA-6053C CNC Variable Angle Double Head Cutting Saw
Published by:CBS Industry Co Ltd
Main Features:
- The machine is mainly used for processing of extra-wide aluminum profile, Adopt servo motor to drive reducer, implement saw blade rotating positioning at any angle between 45° and 90°.
- It is new designed to meet the development of modern aluminum curtain wall, aluminum template processing industry and radiator industry.
- It is mainly used for processing of extra-wide aluminum profile, also can be used to process aluminum profile vertical end-face material -discharging.
- Adopt servo motor to drive reducer, implement saw blade rotating positioning at any angle between 45°and 90°.
- Two cutting heads can swing positioning at any angle between 45°and 90°.
- Two cutting heads can at same time, or the fixed head cutting and the right moveable head feeding material continuously
- Hard alloy teeth cutting blade, high cutting speed, high produce efficiency, high process accuracy.
Technical parameter:
| Power Supply | 3-phase, 380V/50Hz |
| Cutting Saw Motor Power | 3 x 2 kw |
| Motor Rotary Speed | 2800r/min |
| The saw wings servo motor | power 0.9 x 2 kw |
| The head horizontal moving servo motor | power 1.5 kw |
| The head angle motor | power 0.18 x 2 kw |
| The Air Pressure | 0.5MPa~0.8MPa |
| Cutting Length | max 5300mm |
| Cutting Width x Height | max 500 x 180 mm (90°) |
| Cutting Height Max | 210 mm (90°) |
| Cutting Angle | Saw Blade 45°~ 90° Machine head 45°~ 90° |
| The feeding speed | Speed Governing Continuously 0~ 3m/min |
| Saw Blade Specification | φ600mm x 4.4mm x φ30mm Z120 |
| Overall Dimension | 7500mm x 2450mm x 1700mm |
