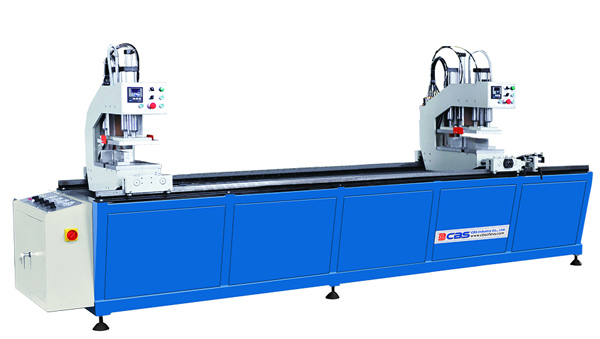

WMC-212 uPVC window and door two-head welding machine

Published by:CBS Industry Co Ltd
Features and functions:
1.        This machine is made up of two welding heads, frame, electric controller box, profile-holding frame, etc.
2.        The left head can move 20mm by following the track.
3.        Every head has their separate location structure, pressing structure, heating structure and head box.
4.        This machine is one of the necessary equipment for processing PVC Window and Door. It can complete the whole welding alone.
5.        It features advanced technique, pneumatic drive, PLC control, stable capability and simple operation.
6.        The non-oil lubricating bearing and liner moving bearing make high precision and convenient maintaining.
7.        The two heads can work individually and jointly. It enables welding all kinds of shape.
8.        The machine has a special right head that can weld small size various angles.
Technical parameter:
Input voltage 220V
Input frequency 50Hz
Input power 2.5kW
Working air pressure 0.5-0.8MPa
Air consumption 100 L/ min
Welding height 20~100mm
Max welding width 120mm
Welding size 400~3500mm
Dimension 4500 x 1000 x 1700mm
