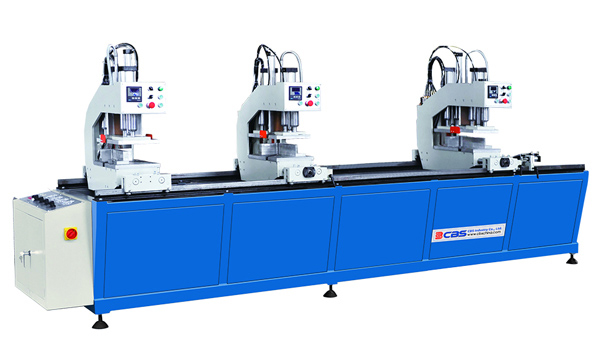

WMC-312 uPVC windows and doors three-head welding machine

Published by:CBS Industry Co Ltd
upvc-window-machine
Features and functions:

1. This machine is made up of three welding heads, frame, electric controller box, profile-holding frame, etc.
2. The left head can move 20mm by following the track. Every head has their separate location structure, pressing structure, heating structure and head box.
3. This machine is one of the necessary equipment for processing PVC Window and Door. It can complete the whole welding alone.
4. It features advanced technique, pneumatic drive, PLC control, stable capability and simple operation. The non-oil lubricating bearing and liner moving bearing make high precision and convenient maintaining.
5. The machine has a special right head which can weld small size various angles.
6. The three heads can work individually or jointly.

Technical parameter:

Input voltage 220V
Input frequency 50Hz
Input power 3.5kW
Working air pressure 0.5-0.8MPa
Air consumption 150 L/ min
Welding height 20~120mm
Max welding width 120mm
Welding size 400~3500mm
Dimension 4500 x 1000 x 1700mm
