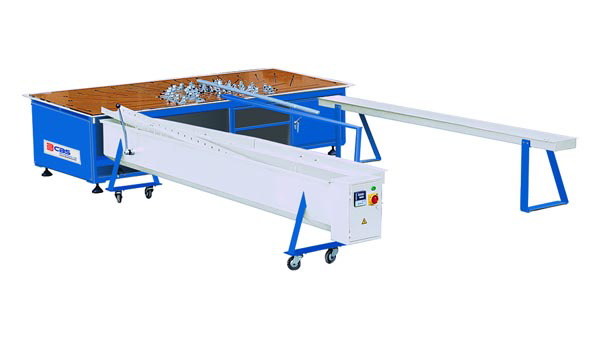

BPO-30 uPVC Profiles Arch Bending Machine

Structure feature:
This machine is made up of bending and shaping worktable, oil-heating groove, board rod, shaping belt, and filling belt. It's used for vinyl profiles, pvc profiles, plastic profiles and upvc profiles bending for arch windows and doors fabrication. It's an important upvc and pvc windows machinery and equipment. It features reliable function, safe operation, and high efficiency.

Function:
After being filled up with the shaping belt in the profile chambers, put the whole profile into to heating groove which have the heated glycerin, after about 2 minutes, the profile will be softened, then it can be bent and finalized to the design of semicircle you need whose diameter is between 500mm and 1800mm or arch of any type whose diameter is not more than 3000mm on the worktable. Further it can use different shaping belt according to different profile.

Special hint:
1. When installing, you must do grounding it according to the electric wiring diagram.
2. Keep the working floor clean, prevent from sliding and freezing.
3. The degree of tightness should be suit as the profile is being filled up.
4. As putting the profile into the oil groove for heating, the handle should drop slowly to prevent the heating medium from spilling.
5. After finishing work, you must shut the electric power, clean the worktable surface and hood the plastic cloth as dustproof.

Technical parameter:

Input voltage:	380V 50Hz
Input power:	12kW
Worktable dimension:	2850×1250×800mm
Oil-heating groove dimension:	3100×300×650mm
Weight:	420kg
