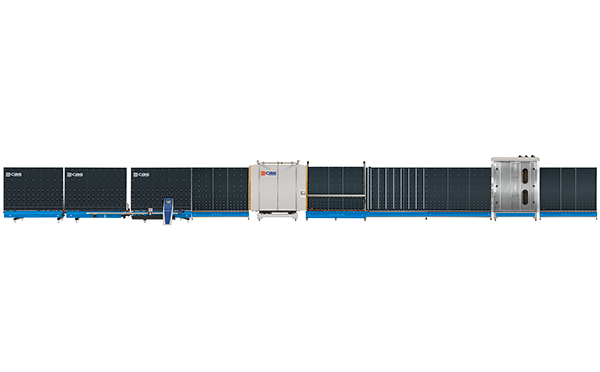

IGL-2510E-SD Automatic insulated glass production line with sealing robot

Published by:CBS Industry Co Ltd
insulating-glass-unit-production-line

Features and functions:
  1. The production line including glass loading section, washing & drying section, glass transportation section, inspection & spacer assembly section, glass assembly section, plate press section, output section and sealing robot.
  2. Automatically distinguish the coating side of coated glass and Low-E glass.
  3. PLC controller with touch screen operation.
  4. It adopts outside glass assembly, which can produce standard double layer IGU and three layers insulated glass unit.
  5. Plate press section adopt gear and chain synchronous devise and driven by hydraulic station. The plate press table also openable for maintenance.
  6. Whole line adopt frequency converter to adjust speed, output 800 PCS per shift.
  7. Integrated with automatic sealing robot which increased the productivity. Double set sealing extruding system makes the shifting gluing system is very simple and high productivity.
  8. Inside plate press is optional for step IGU production.

Technical parameter:

Processed I.G. unit size Min:  300x450mm,
Max: 2500x3000mm, 2500x3500mm(over long unit, Optional)
Ways of assembly Outside automatic assembly, inside plate press
Power 3-Phase, 4 wires, 380V 50Hz, 37kW
Air consumption 800L/min
Washing speed 2-8m/min
Max. working speed 45m/min(adjustable according to requirement)
Single glass thickness: 3-15 mm
Insulating glass unit thickness 12 ~ 50mm;
Compressed air supply 0.5-1.0Mpa, 0.8m3/min
Water electrical conductivity ≦50μS/cm
Ambient temperature 10℃-30℃, following DIN 40040
Relative air humidity ≦75%,following DIN 40040
Overall dimension 33750x2300x3400mm
