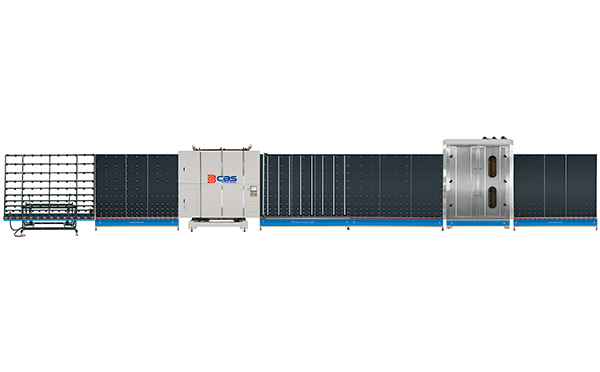

IGL-1807N Automatic Insulating Glass Production Line

Features and functions:

1. The production line including glass loading section, washing & drying section, glass transportation section, inspection & spacer assembly section, plate press section, output section and tilting table.
2. Automatically distinguish the coating side of coated glass and Low-E glass.
3. PLC controller with touch screen operation.
4. It adopts inside glass assembly, which can produce standard double layer IGU, three layers insulated glass unit and step insulated glass unit also.
5. Plate press section adopt gear and chain synchronous devise and driven by hydraulic station. The plate press table also openable for maintenance.
6. Whole line adopt frequency converter to adjust speed, output 800 PCS per shift.
7. Automatic gas filling in the plate press section (optional).


Technical parameter:


Processed I.G. unit size	Min:  300x450mm, Max: 1800x2500mm,
Ways of assembly	Outside automatic assembly, inside plate press
Power	3-Phase, 4 wires, 380V 50Hz, 21.00 kW
Air consumption	600L/min
Washing speed	2-8m/min
Max. working speed	45m/min(adjustable according to requirement)
Single glass thickness:	3-12 mm
Insulating glass unit thickness	12 ~ 40mm;
Compressed air supply	0.5-1.0Mpa, 0.8m3/min
Water electrical conductivity	≦50μS/cm
Ambient temperature	10℃-30℃, following DIN 40040
Relative air humidity	≦75%,following DIN 40040
Overall dimension	20000x2100x3100mm
