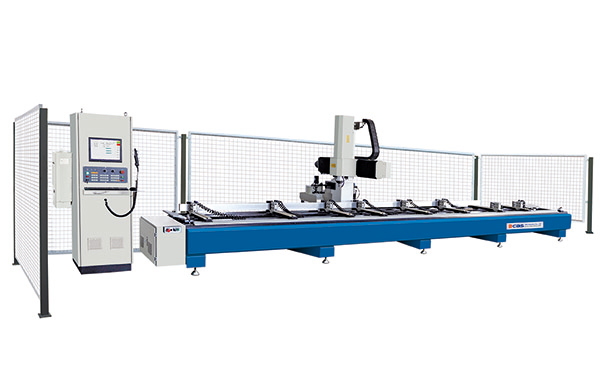

TMC-7000 Three-axis CNC machining center
Published by:CBS Industry Co Ltd
Features:
1. Advanced industrial CNC 3-axis profile machining systems, friendly machine interface with use-friendly operation.
2. Suitable for aluminum, aluminum / wood composite profile, profiles and other light alloys of copper, as well as the u-PVC profile processing.
3. The milling head can drill within a range of 90 ° ~0 ° ~-90 ° with according tools at any position.4. The machine completes milling, drilling, tapping, chamfering, grooving and other multi-functional precisely in one time, the profile was conveyed by the precise stationary avoid profile damage.
5. Adopts imported high precision linear guide ways, ball screws, gear racks and servo motor, ensuring smooth motion, positioning and processing in high precision
6. High-quality imported automatic tool change based on automatic travel magazine, minimum the tool change time and rotation noise, maximum stability ,precision, and cutting ability
7. Magazine is equipped with 6 as standard or more station capacity, adjustable pneumatic special fixture to ensure efficient processing
8. Double working area for two kinds of profile loading, milling one after another, interactive feeding, non interference
9. Multiple safety protection structure to ensure operator safety ,Industrial PC control 2.5 D operation with 19’’ color monitor.
10. RJ 45 10/100Mbit network as the standard
11. USB Connection, CAD input data, or writing by hand on the computer
12. High strength welding structure, heat aging and annealing processing, guarantee high rigidity and high stability
13. UPS protection systems.
14. Special Air Conditioner is standard equipped for tropical climate region to protect controlling system.
Technical specification:
| X-axis Traveling | 7180mm | Y-axis traveling | 1220mm（3 axis） |
| X-axis working stroke | 7000mm | Y-axis working stroke | 540mm |
| X-axis feed rate | 0~60m/min | Y-axis feed rate | 0~48m/min |
| X-axis positioning accuracy | ±0.05mm | Y-axis positioning accuracy | ±0.02mm |
| Z-axis traveling | 600mm | Repeat location accuracy | ±0.02mm |
| Z-axis feed rate | 0~20m/min | Roughness | Ra 6.3 um |
| Z-axis positioning accuracy | ±0.02mm | Spindle Speed | 0~24000rpm |
| Z-axis working stroke | 200mm | Machinery Weight | 4560kg |
| Spindle Power | S1: 7.5kW | Total Power of Machine | 12.5kW |
| Power Specification | 380V/50Hz | Machine Size | 11300×2350×2550mm |
| Working Pressure | 0.6～0.8MPa |
