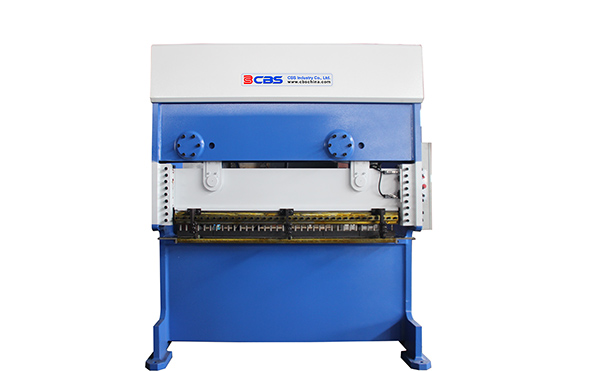

FPC-1036 Aluminium Formwork Hydraulic Punching Machine

Features and functions:

1.      The punching machine is used for the aluminium formwork 80-600mm U Panel and 100x100~200 G profile holes punching.

2.      The machine body is heat treated to eliminate internal stress and has sufficient strength and rigidity.

3.      The machine adopt high quality hydraulic station driven, the four-bar linkage mechanism ensures that the slider and the punching pins are simultaneously working.

4.      The punching stroke adopts photoelectric control, which is easy to operate and has high precision.

5.      The punching pins is free of disassembly, so, the holes distance is easily set without disassembling the punching pins, which features high production efficiency and easy operate.

6.      The machine have special support system to guide the punching pin to make sure the pins in the center of the core, the punching is free of burrs, and the service life of the punching pins can be extended to 4-6 months.

7.      The hydraulic system adopts the latest 40 valve group, increased the pressure-retaining valve and quick valve, improve production efficiency, punching time only 6S.

8.      The hydraulic system adopts an integrated design to save space. The use of an adjustable vane pump instead of a traditional plunger pump reduces equipment operating noise.

9.      The hydraulic system has three levels of protection, the main system pressure protection, adjustable electric contact pressure gauge and travel limitation protection.

10.   It adopts self-lubricating copper sleeve and automatic oil filling system also, the time can be adjusted easily.



Technical parameter:



Input voltage	3-phase, 380/415v, 50hz
Rated Power	15kW
Punch Stroke	75mm
Working Pressure	18MPa
Max. Pressure	25MPa
Max. Punching Holes	36 nos.
Punching Holes distance	50 mm
Punching time	6 S
Worktable Length	1800mm
Worktable Height	950mm
Overall dimensions	2300x1200x2050 mm
Gross weight	7700KG



 FPC-1036 Aluminium Formwork Hydraulic Punching Machine Demo
