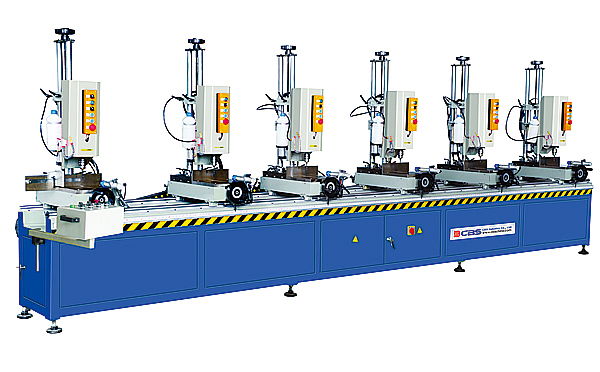

DMH-613/513/413 Multi-head Combination Drilling Machine

Published by:CBS Industry Co Ltd

Features and functions:
  1. used for drilling holes in aluminium profiles and curtain wall profiles.
  2. Adopt programmable controller (PLC) ensures the machine running steady and reliable.
  3. The drilling heads can be used individually, combinative or jointly as well as be combined at will.
  4. The section of profile is not more than 250×250mm, the processing length is up to 5000mm.
  5. Optional: multi-drilling head are optional to meet multi-group holes processing in one time.
  6. Optional: it can increase the powered head quantity base from the basic configuration.
Technical parameter:
  DMH-613 DMH-513 DMH-413
Input power source 3-phase, 380V/50Hz
Drill heads number 6 5 4
Total power 6.6 Kw 5.5Kw 4.4Kw
rotate speed 1400r/min 1400r/min 1400r/min
Working air pressure 0.6~0.8MPa 0.6~0.8MPa 0.6~0.8MPa
Max diameter of drill hole Ф13mm Ф13mm Ф13mm
Max. distance of two holes 5000mm 5000mm 5000mm
Min. distance of each team of holes 300mm 300mm 300mm
Max distance of head front-back moving 60mm 60mm 60mm
Max distance of power head moving vertical 150mm 150mm 150mm
Milling cutter Feeding 125mm 125mm 125mm
Max profile dimension 250×250mm 250×250mm 250×250mm
Dimension 6000×1000×1900mm
