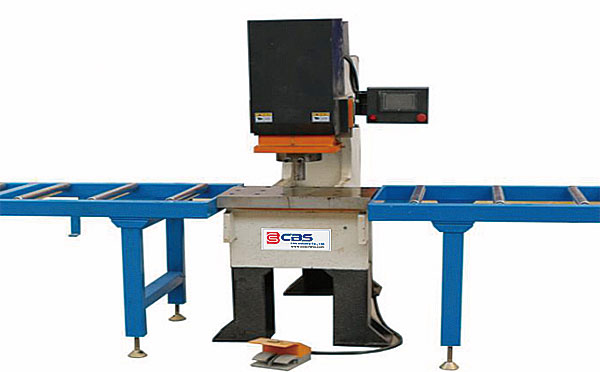

FHM-200 Aluminium Formwork Automatic Flattening Machine
Published by: CBS Industry Co Ltd
Features and functions:

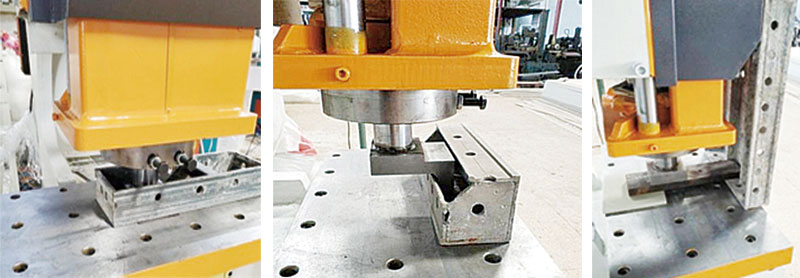

- The flattening machine is designed for aluminium formwork refurbishment work, used for aluminium formwork standard C panel’s sides, surface and IC profile flattening.
- Adopt high speed hydraulic system, working fast and good performance.
- With auxiliary fixtures, it’s easy to set for different panels and convenient for processing.
Technical parameter:
| Input voltage | 3-phase, 380/415v, 50Hz |
| Rated Power | 4.00KW |
| Punching Force | 400KN |
| Working Range | 100 x 10~500 x 65mm |
|
Overall dimensions (not including the conveyor) |
650x1700 x1500 mm |
