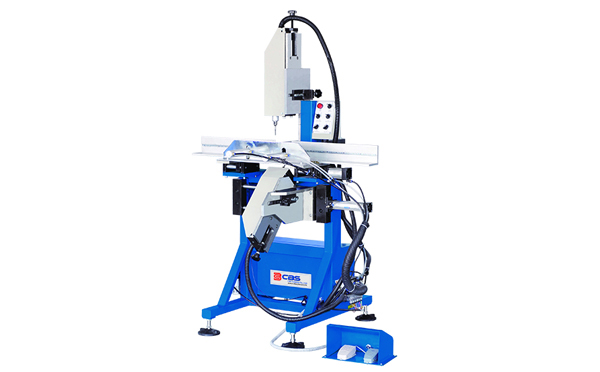

MWN-3100 Automatic water-slot milling machine

Published by:CBS Industry Co Ltd
upvc-window-machine
Features and functions:

1. The machine is used for milling all kinds of water slots and air pressure balance grooves in the pvc, upvc profiles.
2. The sturdy frame structure makes the machine be very rigidity.
3. Automatic cutter changer system features simple operation.
4. High efficiency, suitable for mass production.
5. Special feeding system, no need of special maintenance, adopt high quality linear bearing to ensure the processing precision and good performance of milling.
6. Convenient adjustment for the cutter location to meet different kinds of profiles.
7. Water slot milling length adjustable within 100mm, wide adaptability.
8. It’s a necessary machine for upvc window production.

Technical parameter:

Air Pressure 0.5MPa~0.8MPa
Air Consumption 30L/min
Input Voltage 220V 50Hz
Input Power 1.14KW
Main-shaft Revolution 25000r/min
Cutter Diameter φ5mm or φ8mm
Slot Length 0~100mm adjustable
Overall Dimension 1200mm×1200mm×1800mm
Weight 300kg



MWN-3100 Automatic water-slot milling machine video.
