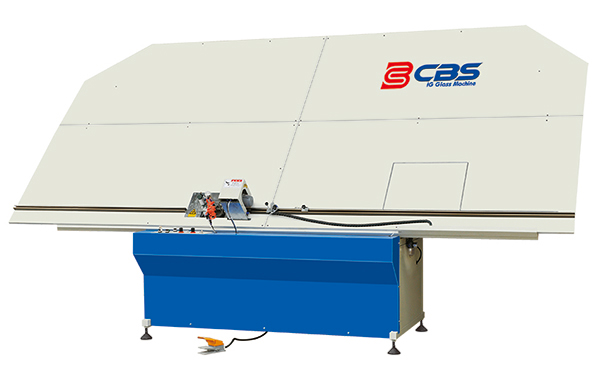

SBH-2525 Semi-automatic Spacer Bending Machine

Published by:CBS Industry Co Ltd


1)    The machine is used for rectangle and square spacer frame bending only.

2)    IT can finish locating, 90 degree corner bending and cutting automatically.

3)    The machine adopt PLC controller.

4)    It features easy operation, reliable positioning and sturdy.


Main technical parameter:


Power voltage/frequency

AC 380V / 50HZ

Total power

2.5 KW

Air pressure

0.5 ~ 0.8Mpa

Min. spacer frame size

350 x 350mm

Max. spacer frame size

2500 x 2500mm

Spacer width range

6mm ~ 27mm

Processing Speed

0~120 m/min

Overall dimensions


Production tolerances

+/- 0.5mm
