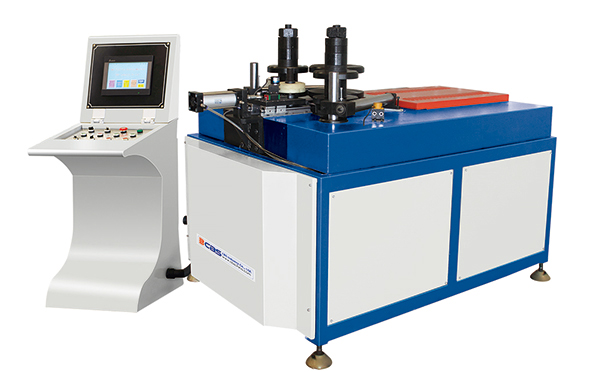

BAC-201M CNC Profiles Bending Machine

Published by:CBS Industry Co Ltd
cnc-profile-bending-machine


Features and functions:
1. The bending machine is used for aluminum profiles, pipes, angles and other metal profiles bending.
2.  The machine adopts CNC controller, set up the bending parameters, the machine can automatically bend the profiles, which make the machine features easy handling and high precision.
3.  With different bending fixture, the machine can process various profiles. The bending fixture is easy for changing.
4. For almost all kinds of arches bending, like C shape, U shape, ellipse, spiral etc.
5. It features reliability, safety and high efficiency.

Technical parameter:
Voltage 3-phase, 380V, 50Hz
Rated Power 4.0 KW
Min. Diameter of Bending 300mm
Max. Diameter of Rolls 200mm
Hydraulic Cylinder Pressure 200kN (20 Ton)
Lower Shafts Centre Distance 350mm
Roller-holding Shaft Diameter 60mm
Rotation speed of shaft 1~14r/min
Positioning precision 0.01mm

BAC-201M CNC Aluminium Profile Bending Machine Video

CNC aluminum lighting fixture rectangle & round bending video



Triangle aluminium lighting fixture bending video


aluminum hexagon led fixture bending- CNC aluminium profile bending machine video


CNC aluminium profile bending machine - how to make S-shape bending video

CNC profiles bending machine - how to make oval bending video
