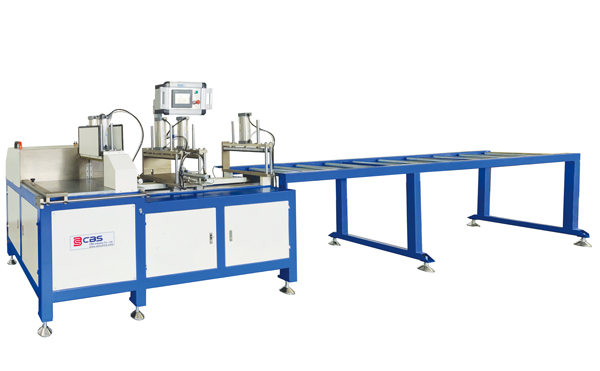

CSAF-500C CNC Automatic Stiffeners Cutting Machine

Published by:CBS Industry Co Ltd
cnc-automatic-cutting-machine

Features and functions:
1. Used for aluminium profiles continuous cutting, it's a full automatic cutting machine.
2. Imported carbide saw blade is accuracy and high efficiency.
3. Input the cutting sizes and quantity through the touch screen, then machine will automatically feeding, cutting and counting.
4. High-power motor makes the cutting easily for heavy profiles.
5. The PLC controller and auto-feeding system with high efficiency is suitable for large volume production.
6. It’s widely used for all kinds of heavy duty industry aluminium profiles cutting, like heat sink profiles, aluminium formwork profiles, motor body profile, curtain wall sections etc.

Technical parameter:

Power supply                               415/380V, 50HZ
Cutting motor power   4.0 KW
Motor rotary speed   2800r/min
Operation air pressure 0.6-0.8Mpa
Auto-feeding length                       20-1000mm
Saw blade feeding speed 0~3m/min
Saw Blade Diameter                      Φ500 xΦ30x4.4
Max. cutting section (Width x Height) 240x150mm, 400x80mm
Cutting angle 90 degree

CNC Automatic Stiffeners Bulk Cutting Machine Demo.
