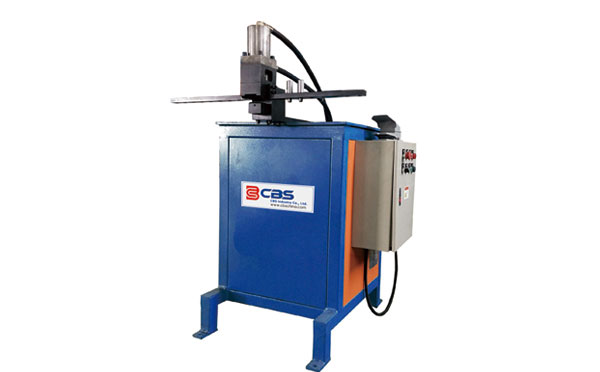

FPS-100 Single head Hole Punching Machine

Features and functions:

1. The machine is designed for aluminium formwork holes punching.
2. It adopt hydraulic power station, with air cooling system
3. It mainly used for both new and old aluminium formwork panel hole modification.
4. The both sides have auxiliary location pins for easily locating.


Technical parameter:


Power	AC380V,50Hz
Punching Hole	1
Pin dimensions	45x16.5mm
Rated Power	3
Worktable Height	950mm
Overal Dimensions	940x980x1400
For IC profile	120x120~200x200
For C panel	60~600mm
Weight	220kg
