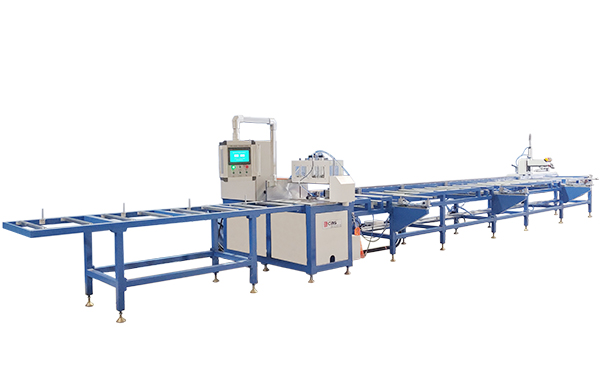

CCSN-500/550 CNC Automatic Aluminium Formwork Cutting Machine

Published by:CBS Industry Co Ltd
aluminium-formwork-cutting-machine

Features and functions:

  1. The machine is suitable for all kinds of large aluminum profiles 90 degree cutting, especial for  aluminium formwork profiles cutting.
  2. The automatic feeding manipulator can take profile and automatically feed according to the cutting list.
  3. Saw blade feeding adopts linear bearing moving pair, the pneumatic feeding cylinder with hydraulic damping system which features smooth movement and excellent performance.
  4. Compact structure, small footprint, high machining accuracy and high durability.
  5. The worktable surface is specially treated for high durable.
  6. Spray mist cooling system can cool the saw blade fast.
  7. Extra large cutting range can cut many profile at one time pass through.
  8. The cutting angle is 90 degrees only.

Technical parameter:

Working air pressure

0.5~0.8mpa

Air consumption

120L/min

Input voltage

3-phase, 380v, 50hz

Input power

4.0kW

Saw Blade Diameter

500 or 550mm

Saw blade speed

2800r/min

Max cutting section

600x 80mm , 450x150mm or 600x95, 450x175mm

Cutting degree

90 degree

Feeding speed

<=10m/min

Repeat sizing tolerance

+/-0.2mm

Degree tolerance

 Less than 5’


CCSN-500 CNC Autoamtic Auminium Formwok Cutting Machine
