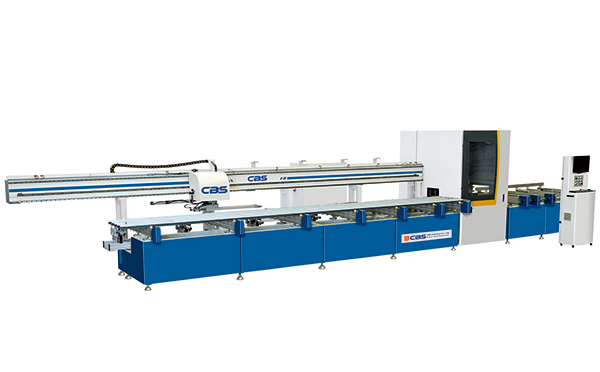

CCAP-6000 CNC Automatic Aluminium Profiles Cutting Saw

Published by:CBS Industry Co Ltd
aluminium-profile-cutting-saw

Introduction:
1. The machine is mainly used for all kinds of aluminium profiles cutting, 45 and 90 degree cutting.
2. Loading transverse worktable automatically feed and clamp the profiles, the loading area can load at 6 pcs profiles.
3. The machine adopt high precision linear guide-way, magnetic scale feedback, industrial computrer contoller system.
4. Saw blades directly connected with imported motor from Italy, features smooth cutting surface, sturdy and high precise.
5. Each time cutting two profiles, it's suitable for bulk productivity.
5. Bar code printer is optional.

Technical parameter:



Working air pressure 0.6~0.8mpa
Air consumption 150L/min
Input voltage 380v 50hz
Input power 4.5kW
Max. cutting height 100mm
Max. cutting width 30~120mm
Cutting Length 300~6000mm
Saw blade spec D550mm
Max cutting pieces 2
Feeding speed 0~3 m/min
Length tolerance +/-0.2mm
Angle tolerance +/-5’
